SwitchBlox Rugged -50°C to +110°C Ethernet Switch

BotBlox
SKU:
BB-SWR-G-1
Availability:
In stock and ready to ship.
$205.00
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 19 and get 6% off
  • Buy 20 - 49 and get 10% off
  • Buy 50 - 99 and get 12.5% off
  • Buy 100 - 199 and get 15% off
  • Buy 200 or above and get 20% off
Current Stock:
Adding to cart… The item has been added
When buying from us, you agree to our Privacy Policy and Terms and Conditions.

The Small, Ruggedized Ethernet Switch

SwitchBlox Rugged is an ultra-tough, 5 port (10 ports when two boards are stacked together) 10/100M ethernet switch designed for the world’s toughest environments. Let your drone go where no drone has gone before.




Unprecedented -40°C to +105°C Operation Range

-40°C to +105°C temperature range

Every single part on the BoM for SwitchBlox Rugged is rated for operation from -40°C to + 105°C (or more). We use military-grade passives, and the switch IC is automotive rated for use in the -40°C to + 105°C range. This makes SwitchBlox Rugged the most temperature tolerant commercially available switch, easily beating the competition’s rating (which tops out at 85°C). If you’re looking for the best reliability in networking for a harsh application, SwitchBlox Rugged is for you.

Frozen ethernet switch still working

Extra Wide 5-65V Voltage Operation

Along with the wide temperature range, SwitchBlox Rugged can operate off any voltage from 5V to 60V (tolerant to 65V), with reverse and transient over-voltage protection onboard. You’ll have to work hard to kill this board.

Market-Leading Size and Cost

Dimensional drawing of small rugged ethernet showing 45.5mm dimensions
SwitchBlox Rugged retains the same footprint as SwitchBlox, making it far smaller than anything else on the market while retaining a price-point that makes it attractive enough for integration into your robot, drone, or other industrial equipment.

Stackable Board

Assembly of two small rugged ethernet switches for a 10 port ethernet switch
Animation of two small rugged ethernet switches being assembled together
SwitchBlox Rugged exposes RGMII on a stackable header, allowing two SwitchBlox Rugged to be stacked together to create a 10 port switch (unmanaged). This requires no software, and works out the box.

The stackable header also allows integration into any other board over RGMII. This can be used for network extension or in-band switch management (Developing an application? We can help, get in touch.)

To stack two boards, you will need a pin header (MPN: M22-2520705), 8mm hex standoffs (MPN: 24382), and M2.5 machines screws (MPN: 29300).

Other Features

Port activity indicator signals can be brought off-board via an onboard connector.

An MCU is embedded onboard, allowing all the managed switch features of the switch chip to be enabled (requires onboard firmware).

Dimensions

We’ve squeezed all necessary Ethernet circuitry into SwitchBlox without making performance compromises. We use magnetics for improved signal integrity and electrical isolation between each ethernet bus.

Compatibility with SwitchBlox

SwitchBlox Rugged is pin compatible, cable compatible, and footprint compatible with SwitchBlox, so can be used as a direct replacement.

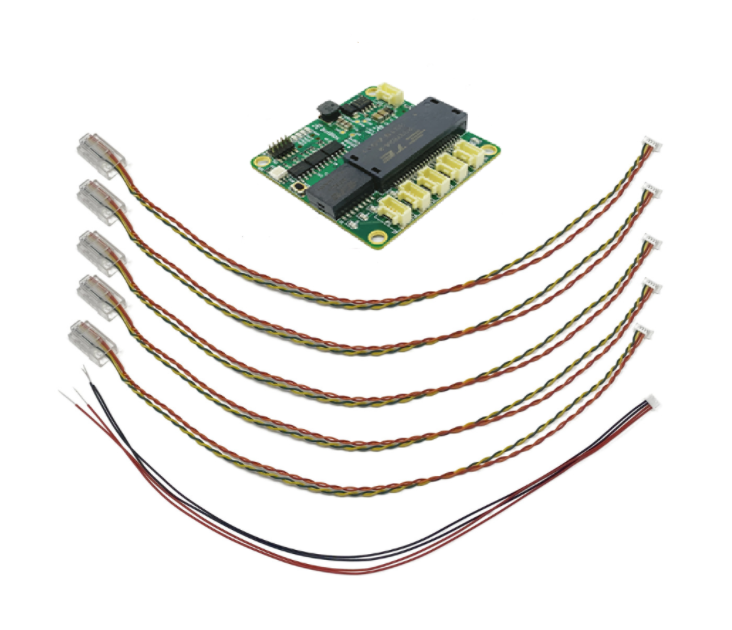

Cabling for BB-SWR-G-1

We use Molex PicoBlade connectors on BB-SWR-G-1, and we include all the cables needed to get started, which are…
5 x PicoBlade to RJ-45 300mm (SKU: BB-PBRJ1-4-0.3)
Ethernet molex picoblade to RJ-45 data cable

Use this cable to connect an external ethernet device with an RJ-45 port.

1 x PicoBlade to Tinned Leads 300mm (SKU: BB-PBTL1-4-0.3)

Molex PicoBlade to tinned leads power cables

Use this cable to connect a 5-60V DC Power Supply to power SwitchBlox Rugged.

Ruggedized Features

1) All parts rated for -40°C to + 105°C or wider temperature range
2) Automotive rated ethernet switch IC
3) Thicker 2mm PCB substrate board for increased mechanical strength
4) No heatsink required
5) Small board with four equidistant mount holes to minimize strain

MTBF Calculation

Part Number Calculation Model Environment Temperature MTBF [h] FIT
BB-SWR-E-1 MIL-HDBK-217 Ground Benign 60°C 450000 0.0000022222

Covered under the BotBlox Supply Guarantee Program

This board is covered by our supply guarantee, which guarantees availability and low lead times until at least 2028. Read more about the BotBlox Supply Guarantee Program.

Custom Cables

All our boards are shipped with the required 0.3 meter power and data cables included, so you do not need to purchase extra cables. However if you need custom cable lengths for your application, you can order those using the links below.

Custom PicoBlade Data Cables

Custom PicoBlade Power Cables

Custom PicoClasp Data Cables

Custom PicoClasp Power Cables

google_product_category:
Electronics > Networking
condition:
new
custom_product:
false
mpn:
BB-SWR-A-1
show_buy_from_distrib_links:
true
Digi-Key (International distributor):
https://www.digikey.com/short/8pdm0pnw
Input Voltage Range 5-60V (reverse protected)
Power Consumption 600mW (Idle), 1200mW (Max)
Ports 5 x 10/100Mb ports
Operating Temperature -50 to +110°C
Storage Temperature -55 to +125°C
Dimensions 44.5mm x 44.5mm x 11.17mm
HS Tariff Code 8517.62.00.20
US ECCN 5A991
Product Status and Lifetime Active, with a 5-Year Minimum Lifetime
Revision Subrevision Part number Release Date Notes
A 1 BB-SWR-A-1 01/11/2020 Initial release, (Molex PicoBlade, 4 pin friction lock)
B 1 BB-SWR-B-1 27/12/2020 Changed connector to 5 pin Molex PicoClasp (positive lock)
C 1 BB-SWR-C-1 16/05/2021 Changed power IC due to stock issue
D 1 BB-SWR-D-1 11/07/2021 Changed back to Molex PicoBlade, 4 pin connector
D 2 BB-SWR-D-2 05/12/2021 Change power IC due to stock issue, DNP'd PoE circuitry
E 1 BB-SWR-E-1 02/03/2022 Added supervisor IC to reset line to increase reset stability
F 1 BB-SWR-F-1 18/09/2023 Added I2C pins to stacking header for Rugged SOM compatibility.
G 1 BB-SWR-G-1 10/02/2024 Upgraded MCU, Added Molex PicoBlade UART serial connector, changed footprint to accept both 4 pin PicoBlade and 4 pin PicoClasp. (Current Version)
G-PC 1 BB-SWR-G-1-PC 11/04/2024 Alternative version of BB-SWR-G-1 that uses positive locking Molex PicoClasp instead of friction locking Molex PicoBlade. BB-SWR-G-1-PC is not a replacement for BB-SWR-G-1, instead both are sold as product variants.
