GigaBlox Rugged -40°C to +100°C GigaBit Switch
BotBlox
$321.00
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 2 - 9 and get 0% off
- Buy 10 - 24 and get 2.5% off
- Buy 25 - 49 and get 4% off
- Buy 50 - 99 and get 6% off
- Buy 100 or above and get 10% off
Description
The Smallest Industrial Gigabit Ethernet Switch
GigaBlox Rugged is a very small layer 2 unmanaged and managed ethernet switch that fits four 10/100/1000Mbps copper ethernet ports in an ultra-compact 50mm x 55mm form factor. GigaBlox Rugged is designed to be a more rugged and more capable upgrade to our GigaBlox product and is designed for space, weight and price-sensitive (SWaP) industrial, mobile and military applications.
GigaBlox Rugged has an input voltage range of 10V to 60V with transient, overvoltage, and reverse polarity protection on board, meaning it can be dropped directly into a system powered by unregulated bus voltage. This wide input voltage range is particularly advantageous in motor control systems where additional voltage headroom is required due to motor voltage transients.
The -40°C to +105°C ambient operation range is achieved by using automotive/military-grade components whose operation is rated for -40°C to +125°C.
GigaBlox Rugged is also coated with a silicone conformal coating (422C) to provide basic ingress protection.
GigaBlox Rugged does not require any configuration and works “out-the-box” as an unmanaged layer 2 switch. More advanced management features are also possible thanks to the powerful embedded VSC7512 ethernet switch IC from Microsemi. Such features can be enabled by customizing the boot image using reference software from Microchip.
GigaBlox Rugged supports end-to-end IEEE1588 Precision Time Protocol packets by automatically updating the PTP correction field for all PTP packets received.
Initial performance tests for GigaBlox Rugged can be found here.
Block Diagram
(Please note, the previous SKU of this board was BB-GGR-C-1)
Specifications
| Input Voltage Range | 8.5-60V (reverse protected) |
| Power Consumption | 1W (Idle), 4W (Max) |
| Ports | 4 x 10/100/1000Mb ports |
| Operating Temperature | -40 to +100°C |
| Storage Temperature | -55 to +125°C |
| Dimensions | 50mm x 55mm x 18mm |
| Supported protocols | 10/100/1000BASE-T |
| Number of PHY Ports | 4 x 10/100/1000BASE-T non-blocking ports |
| Number of non-PHY ports | 1 x 1G SGMII, 1 x 2.5G SGMII |
| Frame buffer | Jumbo frame support up to 9600 bytes |
| Packet buffer | 1.75Mbits |
| Boot image | VSC6825 unmanaged software (openly available), F5 unmanaged, loaded onto onboard IS25LQ040B flash |
| Programming method | SPI Flash programming via Tag-Connect 10 pin header or STM32L011D4P7 programming |
| Indicator LEDs | 4 x Onboard LEDs and broken out onto header, 1 x RGB (controlled by STM32) |
| HS Tariff Code | 8517620000 |
| US ECCN | EAR99 |
Datasheet
GigaBlox Rugged Rev C Datasheet (Latest)
GigaBlox Rugged Rev A/B Datasheet (Deprecated)
GigaBlox Rugged Programming Note
GrabCAD 3D Models
Dimensional Drawings
GigaBlox Rugged Dimensional Drawing PDF
GigaBlox Rugged Dimensional Drawing DXF BB-GGR-C-1
Custom Cables

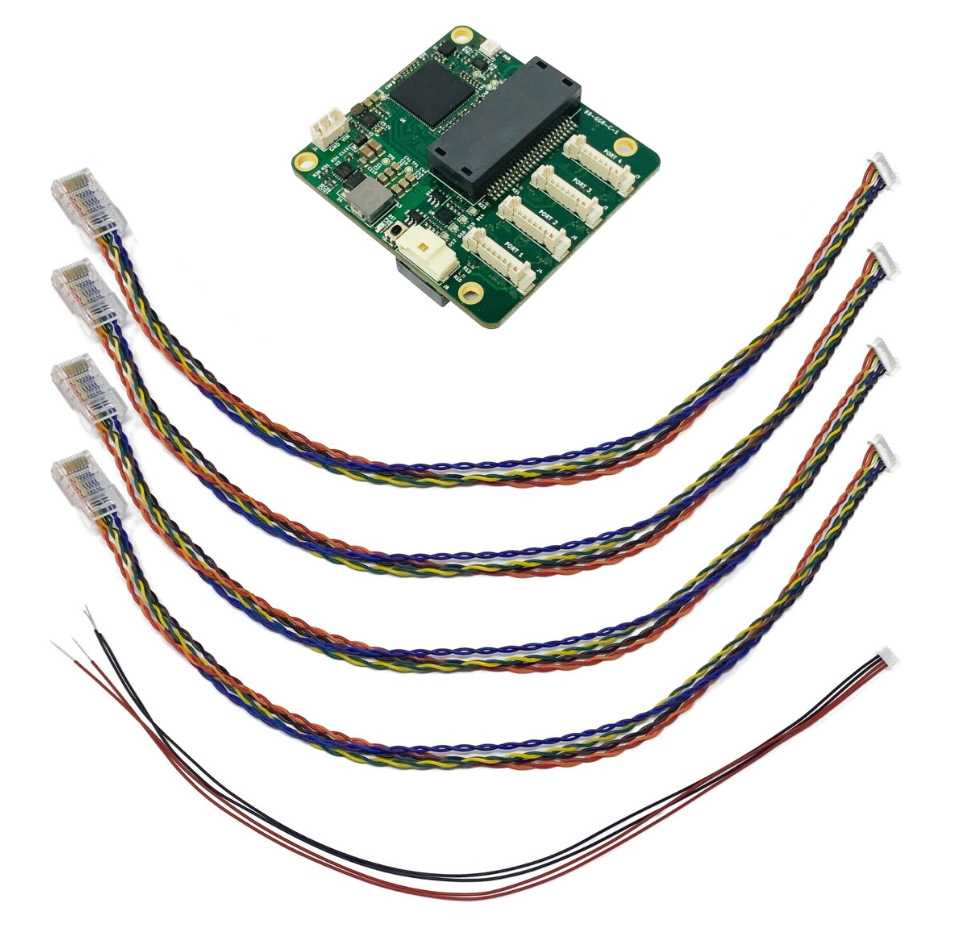

All our boards are shipped with the required 0.3 meter power and data cables included, so you do not need to purchase extra cables. However if you need custom cable lengths for your application, you can order those here.
