SwitchBlox Industrial
BotBloxBelow are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 49 and get 10% off
- Buy 50 - 99 and get 12.5% off
- Buy 100 - 499 and get 15% off
- Buy 500 or above and get 17.5% off
Exact Same SwitchBlox Functionality, -40°C to 85°C operating range
SwitchBlox Industrial is an upgrade to our SwitchBlox board that provides the same functionality with a wider qualified temperature range, a smaller form factor and basic switch management features.
SwitchBlox Industrial can be used as a drop in replacement for SwitchBlox for applications that run at wider temperatures. In many cases it is also a smaller alternative to SwitchBlox Rugged (when the upper 105°C limit is not required).
We developed SwitchBlox Industrial for three main reasons. Firstly we wanted to upgrade our initial SwitchBlox design to improve upon size, performance and temperature range. We also wanted to help mitigate some of the stock issues on our rugged boards by providing a "middle-ground" alternative between the standard and rugged series. Finally we wanted to offer switch management.
Same five 10/100Mbps, smaller size
SwitchBlox Industrial provides the same five 10/100Mbps ethernet ports as SwitchBlox, however it achieves this in a 38mm (1.49 inch) square rather than a 44.5mm (1.75 inch) square.
We achieved by applying some of the design techniques we have learnt since designing SwitchBlox, namely our inter-layer differential trace placement, surface mount transformers, and optimal copper plane heat dissipation.
SwitchBlox Industrial has four M2 (2.2mm) holes for mounting into an application. This is different to the M3 holes used on the variety of our other boards.
Industrial Temperature Range
All parts on SwitchBlox Industrial are rated to operate from -40°C to 85°C, meaning the board can be used in more demanding applications that SwitchBlox. This is achieved by using industrially rated silicon and passives on the board.
Passive PoE is back!
SwitchBlox Industrial now implements the Passive PoE function that was originally present on SwitchBlox. This feature means the power input applied to SwitchBlox can be routed to any or all of its powers to power downstream devices. Which ports are connected is selected by way of a DIP switch on the front of the board. Note that a single 0R resistor needs to be soldered to the board to enable this feature.
Switch Management is back
SwitchBlox Industrial can be configured using ARIES, our switch management software.
Learn About ARIES
LED signal breakout is now available in Revision B
All revision B and above versions of SwitchBlox Industrial (BB-SWI-B-1) now include an LED signal breakout header on the back of the board. This allows the LED signals to be broken out for driving external LEDs.
Each line puts a 1kΩ in series with each LED cathode.
The connector used on the board is 5037630691 (Molex PicoLock) which mates with 5037640601 using crimp 5037650098. A premade cable, 0151320605 can be purchased to interface with this connector. This cable configuration is identical to the LED breakout header on SwitchBlox Rugged, meaning SwitchBlox Industrial can be used as a drop-in replacement for SwitchBlox Rugged.
5-60V input range with 5V, 1.5A output + power protection
Much like SwitchBlox, SwitchBlox Industrial can run from a wide voltage range from 5-60V. SwitchBlox Industrial also provides overvoltage and reverse polarity protection while also providing a regulated 5V power output with up to 1.5A current sourcing ability.
Covered under the BotBlox Supply Guarantee Program
This board is covered by our supply guarantee, which guarantees availability and low lead times until at least 2028. Read more about the BotBlox Supply Guarantee Program.
Custom Cables

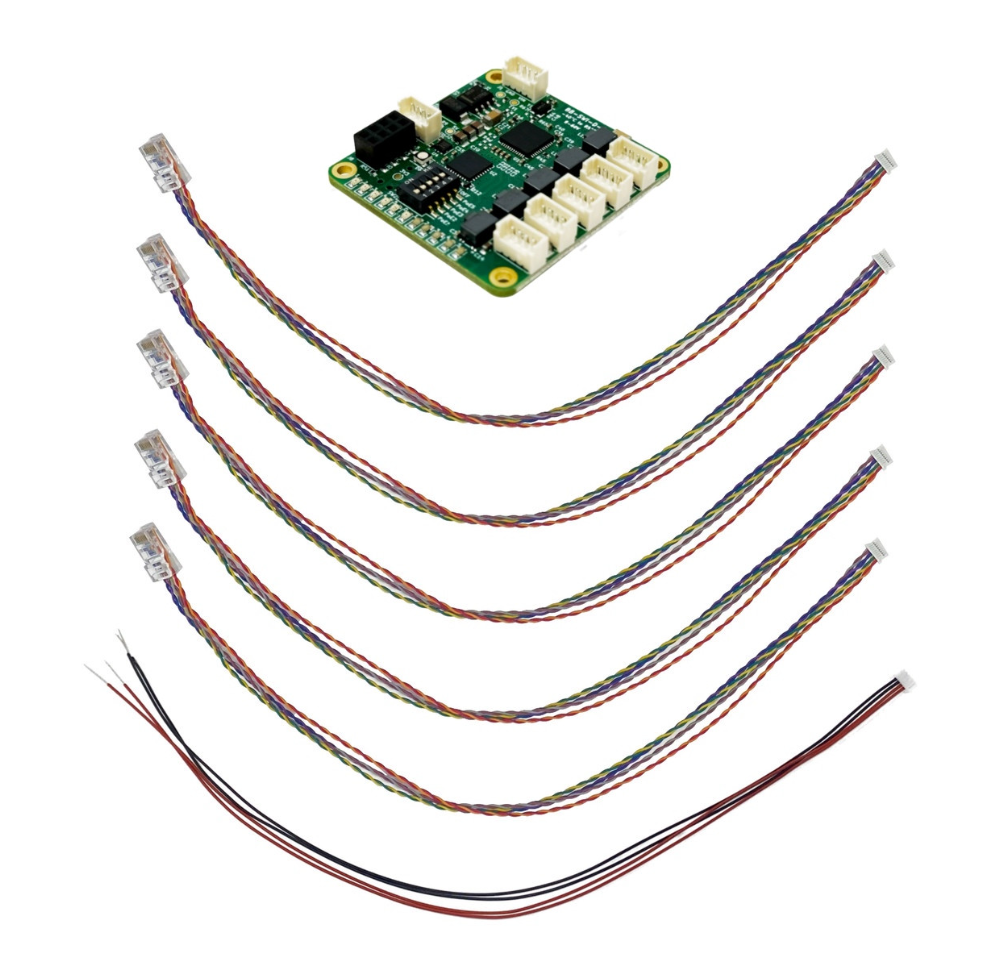

All our boards are shipped with the required 0.3 meter power and data cables included, so you do not need to purchase extra cables. However if you need custom cable lengths for your application, you can order those here.
- show_buy_from_distrib_links:
- true
- Cool Components (UK distributor):
- https://coolcomponents.co.uk/products/switchblox-industrial
- Digi-Key (International distributor):
- https://www.digikey.com/short/qf7dth1p
Input Voltage Range | 5-60V (reverse protected) |
Power Consumption | 300mW (Idle), 800mW (Max) |
Output Voltage | 5V, 2A (5V test results) |
Ports | 5 x 10/100Mb ports |
Operating Temperature | -50 to 85°C |
Storage Temperature | -50 to 85°C |
Dimensions | 38mm x 38mm x 9.2mm |
PoE | Passive Injection (non-standard), 15W per port |
HS Tariff Code | 8517620000 |
US ECCN | EAR99 |
Product Status and Lifetime | Active, with a 5-Year Minimum Lifetime |
Revision | Subrevision | Part number | Release Date | Notes |
---|---|---|---|---|
A | 1 | BB-SWI-A-1 | 10/10/2022 | Initial release |
B | 1 | BB-SWI-B-1 | 16/06/2023 | Upgraded STM32 to run BotBlox ARIES software |
C | 1 | BB-SWI-C-1 | 01/08/2024 | Upgraded STM32 to run BloxOsLite CLI interface (not yet released) |
C | 1 | BB-SWI-D-1 | 15/09/2024 | Board hardware upgraded to achieve pressure tolerance up to 6000 PSI (not yet released) |
