Transformerless ethernet breakout board for GigaBlox Nano
This is the PicoBlade stackable breakout board for GigaBlox Nano.
This board routs the four ports of GigaBlox Nano onto four PicoBlade headers (the same type as used on the standard GigaBlox). Power for GigaBlox Nano is routed onto a PicoBlade header. The pinout used is the same as on our GigaBlox.

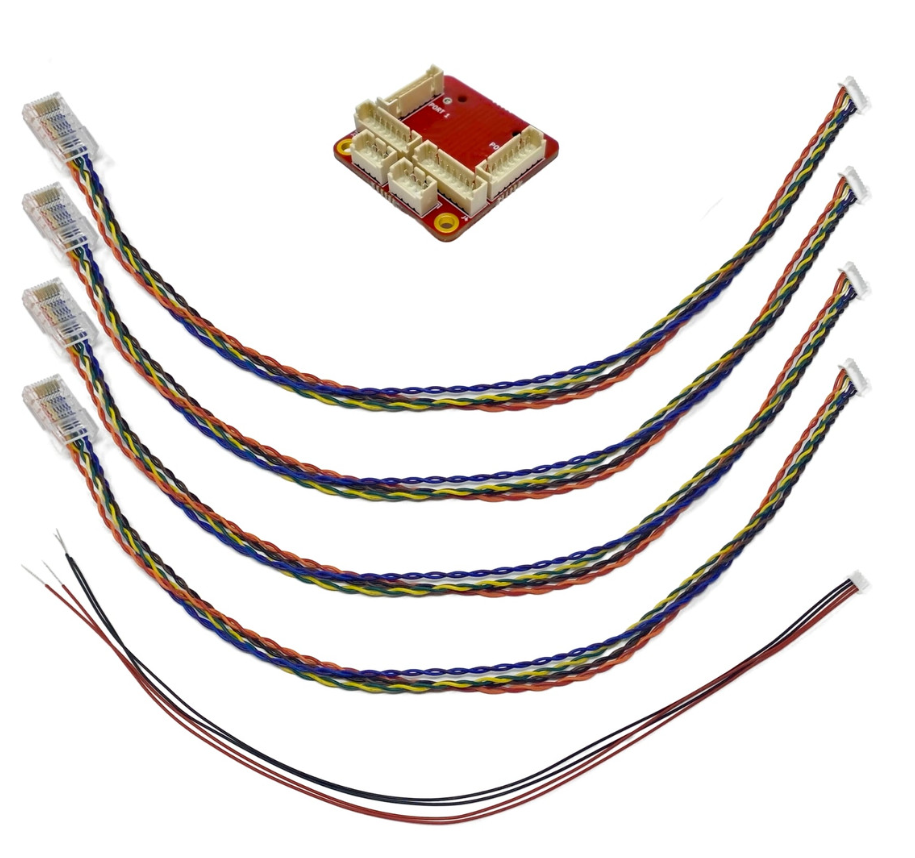

This product ships with the following cables:
4 x PicoBlade to RJ-45 300mm (SKU: BB-PBRJ1-8-0.3)
1 x PicoBlade to bare wires 300mm (SKU: BB-PBTL1-4-0.3)
Covered under the BotBlox Supply Guarantee Program
This board is covered by our supply guarantee, which guarantees availability and low lead times until at least 2028. Read more about the BotBlox Supply Guarantee Program.
Custom Cables
All our boards are shipped with the required 0.3 meter power and data cables included, so you do not need to purchase extra cables. However if you need custom cable lengths for your application, you can order those here.
