UbiSwitch Baseboard

BotBlox
SKU:
BB-UD1-B-1
Availability:
Available to ship from 28th May 2024.
$255.00
Current Stock:
Adding to cart… The item has been added
When buying from us, you agree to our Privacy Policy and Terms and Conditions.

DOCUMENTATION AND CAD

UBISWITCH BASEBOARD REV B (BB-UD1-B-1) DATASHEET (Current)

UBISWITCH BASEBOARD REV A (BB-UD1-A-1) DATASHEET (Deprecated)

UBISWITCH BASEBOARD REV A (BB-UD1-A-1) OPEN SOURCE DESIGN FILES

UBISWITCH BASEBOARD REV A (BB-UD1-A-1) DIMENSIONAL DRAWING PDF

UBISWITCH BASEBOARD REV A (BB-UD1-A-1) DIMENSIONAL DRAWING DXF

UBISWITCH BASEBOARD POWER CABLE (BB-PCTL1-4-0.4) DATASHEET

UBISWITCH BASEBOARD DATA CABLE (BB-PCRJ1-8-0.4) DATASHEET

Need something smaller? Check out UbiSwitch BaseBoard Mini

The UbiSwitch Baseboard is a compact connectivity breakout and development board for the BotBlox UbiSwitch Module that provides 8 x 10/100/1000Mbps (gigabit) ethernet ports on Molex Picoclasp headers and 3 x 10G SFP cages. This allows UbiSwitch to be quickly tested and deployed in a networking application.

This solution, when combined with the UbiSwitch Module, provides an unprecendented level of networking density, designed to enable high throughput data links in space limited applications such as inside drones or compact robotics.

The UbiSwitch Baseboard contains magnetics on all 8 gigabit ethernet ports for full signal isolation. The board is powered by a pigtail to Molex PicoClasp that can accept a voltage range from 7 to 60V, with reverse polarity and overvoltage protection, making it suitable to be run direct from an unclean bus voltage. Voltage regulation onboard the baseboard ensures that the UbiSwitch module receives a clean power voltage.

The Molex PicoClasp connectors feature a positive locking feature, an improvement over Molex PicoBlade, making it more suitable for vibration sensitive environments.

The design files of the UbiSwitch baseboard are available publicly so this design can serve as a reference design for custom boards using the UbiSwitch module.

Revision Tracker

Revision Subrevision Part number Release Date Notes
A 1 BB-UD1-A-1 01/03/2023 Initial release
B 1 BB-UD1-B-1 20/05/2024

1. Added integrated PCB mount spacers to UbiSwitch mount location, meaning external PCB spacers are no longer needed.
2. Added I2C SFP mux chip for SFP management.

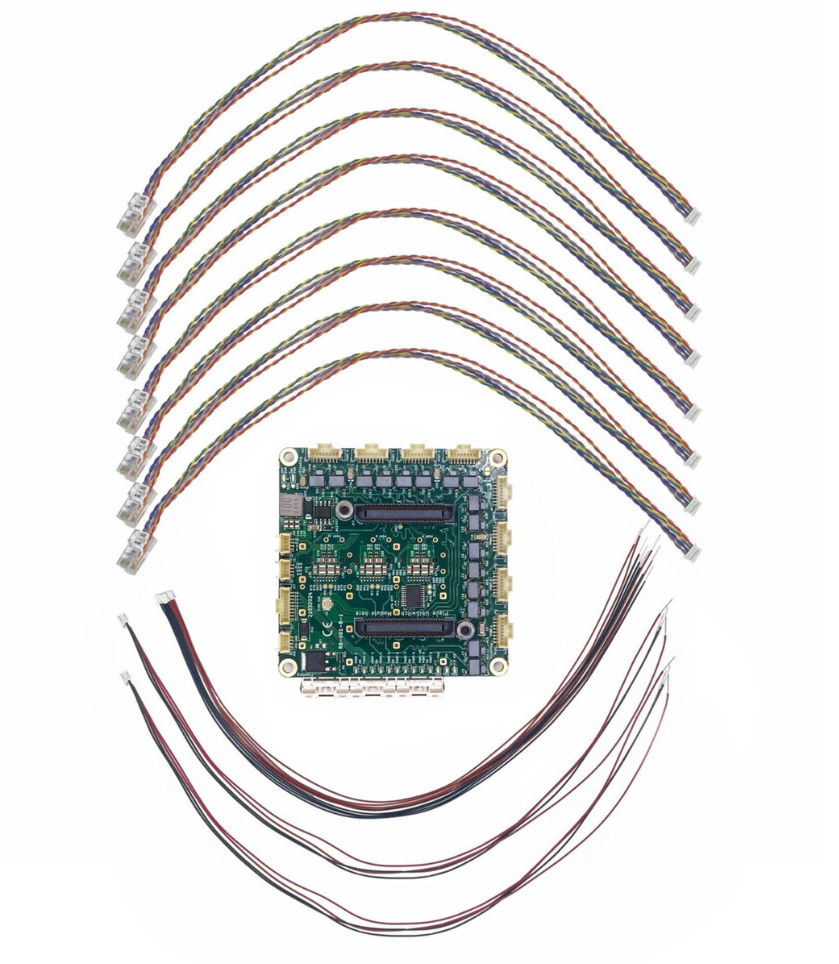

What's Included in the Box?

1 x UbiSwitch BaseBoard

8 x Molex PicoClasp to RJ-45, 8 way, 300mm (UL1061, 28AWG Stranded) (BB-PCRJ1-8-0.3) (Data Cable) (UTP CAT5e Equivalent)

1 x Molex PicoClasp to Tinned Leads, 4 way, 300mm (UL1061, 28AWG Stranded) (BB-PCTL1-4-0.3) (Power Cable)

1 x Molex PicoClasp to Tinned Leads, 9 way, 300mm (UL1061, 28 AWG Stranded) (BB-PCTL1-9-0.3) (LED Cable)

Need a 10G Copper SFP Module? We also sell those here.

Custom Cables
