UbiSwitch Baseboard Mini

BotBlox
SKU:
BB-UDM-A-1
Availability:
In stock and ready to ship.
$202.00
Current Stock:
Adding to cart… The item has been added
When buying from us, you agree to our Privacy Policy and Terms and Conditions.

A Compact Breakout of 4 1GBASE-T ports for UbiSwitch

UbiSwitch Baseboard Mini is a incredibly compact connectivity breakout board for the BotBlox UbiSwitch Module that provides 4 x 10/100/1000Mbps (gigabit) ethernet ports on Molex Picoclasp headers. This allows UbiSwitch to be quickly tested and deployed in a networking application.

UbiSwitch BaseBoard Mini is 42mm x 42mm, the same size as the UbiSwitch Module.

This board provides the most compact way to use UbiSwitch in applications where only 4 of the 10/100/1000Mbps ports are needed, while still gaining the benefits of using UbiSwitch such as software management and a wide temperature range.

UbiSwitch Baseboard Mini contains magnetics on the 4 gigabit ethernet ports for full signal isolation. The board is powered by a pigtail to Molex PicoClasp that can accept a voltage range from 5 to 60V, with reverse polarity and overvoltage protection, making it suitable to be run direct from an unclean bus voltage.

INCLUDED CABLES

We include everything you need to make this board work out of the box. Each board ships with:

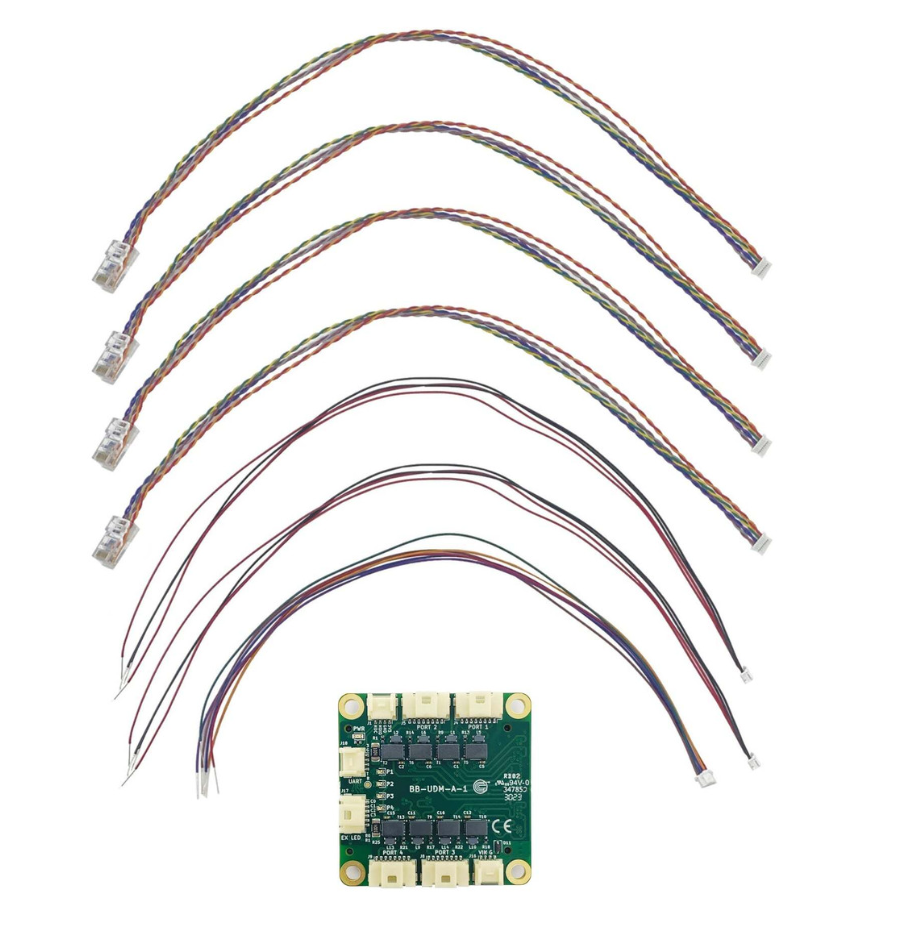

4 x Molex PicoClasp to RJ-45, 8 way, 400mm (UL1061, 28AWG Stranded) (BB-PCRJ1-8-0.4) (Data Cable) (UTP CAT5e Equivalent)

2 x Molex PicoClasp to Tinned Leads, 4 way, 400mm (UL1061, 28AWG Stranded) (BB-PCTL1-4-0.4) (Power Cable)

1 x Molex PicoClasp to Tinned Leads, 6 way, 400mm (UL1061, 28AWG Stranded) (BB-PCTL1-6-0.4) (LED Cable)

Custom Cables

google_product_category:
Electronics > Networking
condition:
new
custom_product:
false
mpn:
BB-UDM-A-1
Revision Subrevision Part number Release Date Notes
A 1 BB-UDM-A-1 19/07/2023 Initial release
