Single Pair Ethernet Evaluation Kit

SPEBlox Module Evaluation Board

BotBlox
SKU:
BB-SPEMEVAL-A-1
Availability:
In stock and ready to ship.
$245.00
Current Stock:
Adding to cart… The item has been added
When buying from us, you agree to our Privacy Policy and Terms and Conditions.

An evaluation kit for SPEBlox Module

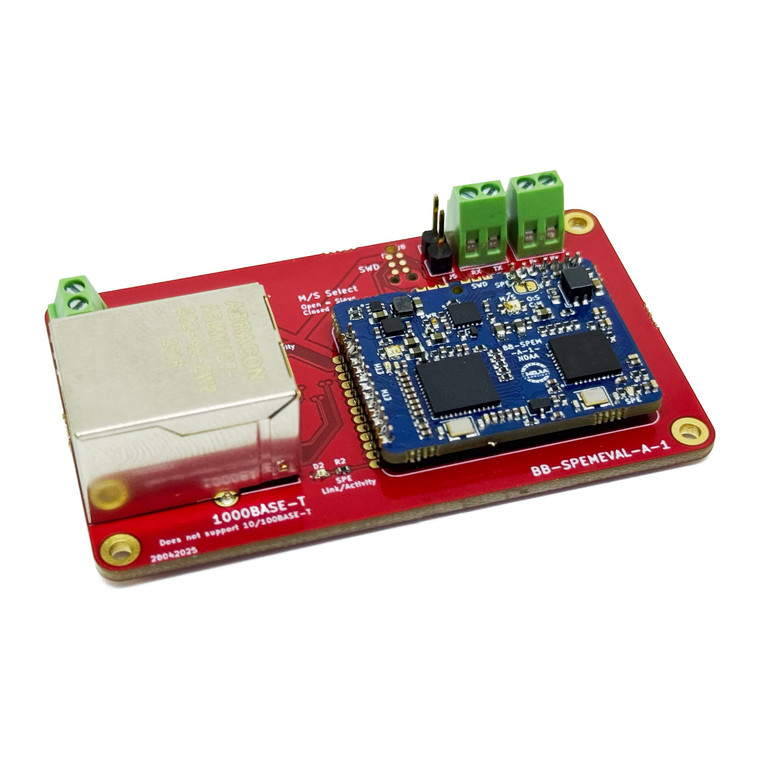

SPEBlox Module Evaluation board is a pre-assembled board that allows quick and easy testing of the SPEBlox Module. The board cones with SPEBlox Module pre-assembled. The following ports are broken out for easy access.

  • 3.3V Power Input onto a screw terminal
  • 1000BASE-T (standard gigabit ethernet) port onto a RJ-45 terminal (transformers included)
  • 1000BASE-T1 (gigabit single pair ethernet) port onto a screw terminal
  • UART configuration and control (currently unimplemented) onto a screw terminal
  • Master/Slave configuration via a jumper.
Description

An evaluation kit for SPEBlox Module

SPEBlox Module Evaluation board is a pre-assembled board that allows quick and easy testing of the SPEBlox Module. The board cones with SPEBlox Module pre-assembled. The following ports are broken out for easy access.

  • 3.3V Power Input onto a screw terminal
  • 1000BASE-T (standard gigabit ethernet) port onto a RJ-45 terminal (transformers included)
  • 1000BASE-T1 (gigabit single pair ethernet) port onto a screw terminal
  • UART configuration and control (currently unimplemented) onto a screw terminal
  • Master/Slave configuration via a jumper.
