Ultra compact bandwidth for rugged Al at the edge

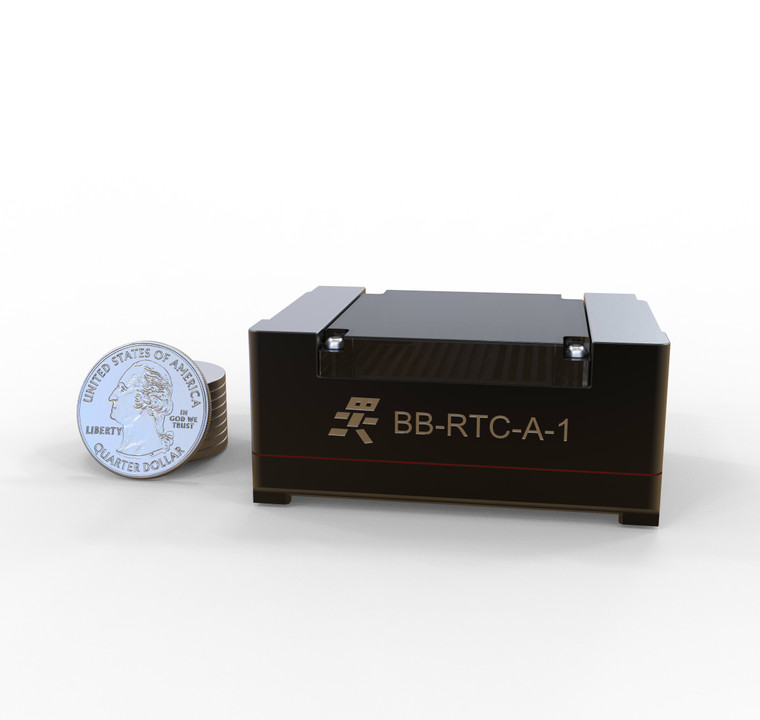

RouterCore is a tiny, rugged, 16 port 1Gbps + 3 port 10Gbps router in a modular, embeddable form factor.
With the smallest size on the market, leading low power consumption specs, RouterCore brings high bandwidth to ultra SWaP-limited applications.
Designed for edge Al and compute to move large data in harsh, mobile environments like air, sea and space.
- 16 × 10BASE-T / 100BASE-Tx / 1000BASE-T (integrated magnetics)
- 3 x 10GBASE-R / UXSGMII / 1GBASE-X / SGMII
- Samtec SEARAY stacking connector (SEAM-20-02.0-L-10-2-A-K-TR)
- 90 Watt POE on 4 of the 1000BASE-T ports
- Dimensions: 68 x 46 x 28mm
- Power input: 5 - 60V
- CAN, UART, I2C, Wi-Fi6, BLE 5.4
- Use our SFP baseboard, or mount directly to your PCB.
Check out our RouterCore BaseBoard for the module.
RouterCore Module Product Brief
RouterCore ECAD Symbol and Footprint
