Encapsulated, Management "Network-on-module"

SwitchCore Module is an 8 port (10/100BASE-T) ethernet switch and router in a ultra compact, modular form factor.

At in incredibly small size of 27.6mm x 27.6mm x 10.7mm (1.09 x 1.09 x 0.43 inches), allows advanced ethernet switching capability to be added directly to an application, through modular stacking connector.

SwitchCore contains all ethernet circuitry, including transformers, meaning only connectors are needed on the baseboard, hugely minimizing custom hardware work.

SwitchCore addresses many of the requirements defined in the MOD PAYLOAD standard for UAS and other small vessels.

Super Small, Super Low Power, Super Rugged

At 27.6mm x 27.6mm x 10.7mm (1.09 x 1.09 x 0.43 inches), weighing only 40 grams, nothing this small or light delivers 8 x 10/100BASE-T ethernet, UART with traffic management.

SwitchCore draws only 1 Watt of power, and can be supplied from a wide, unregulated voltage input range from 4-40V.

All power dissipation is handled through the Aluminium 7075 chassi, meaning no additional heatsinking is necessary. This chassis also protects the internal circuitry against ingress, vibration and shock.

Embedded Switch Management

SwitchCore ships with embedded switch management software for port managment and VLANs. This is being expanded upon to add more Layer 2 and Layer 3 routing capability.

SwitchCore does not contain any cable-mate connectors. It is designed to be mounted to a baseboard for connector breakout. This allows full flexibility for connector position and type for customer applications.

Ethernet in a module

SwitchCore contains all required ethernet circuitry, including transformers, meaning the baseboard only needs to provide connectors.

This level of modularity, combined with ethernet functionality and ruggedness, revolutionizes wired network connectivity for ultra SWaP limited applications like UAVs, USVs and robots.

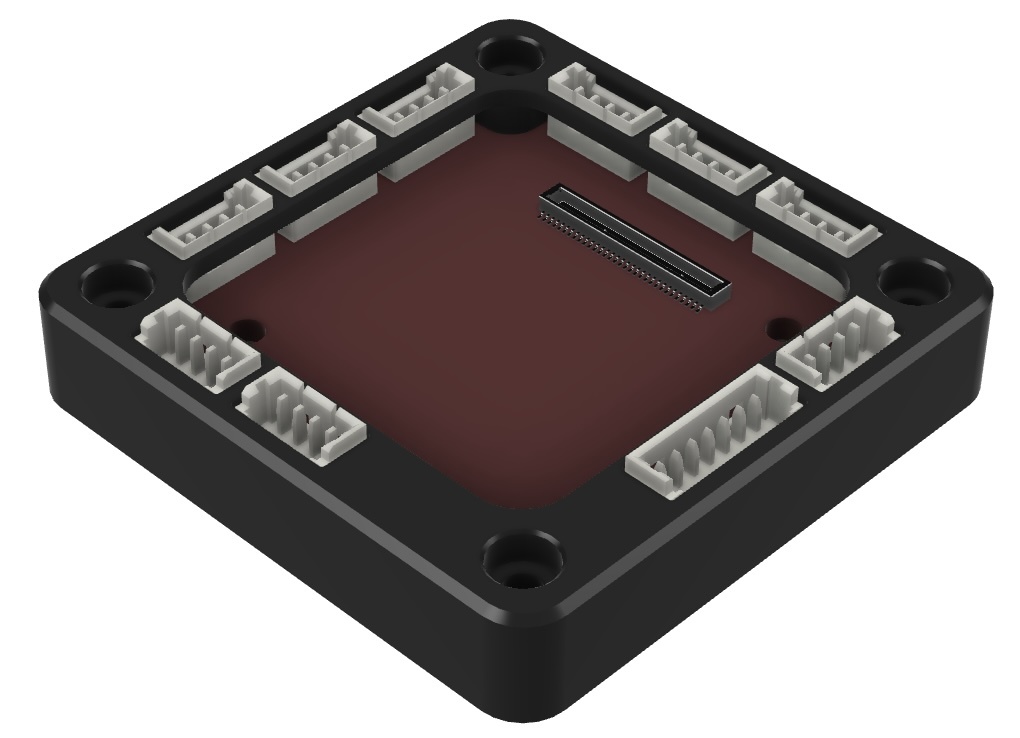

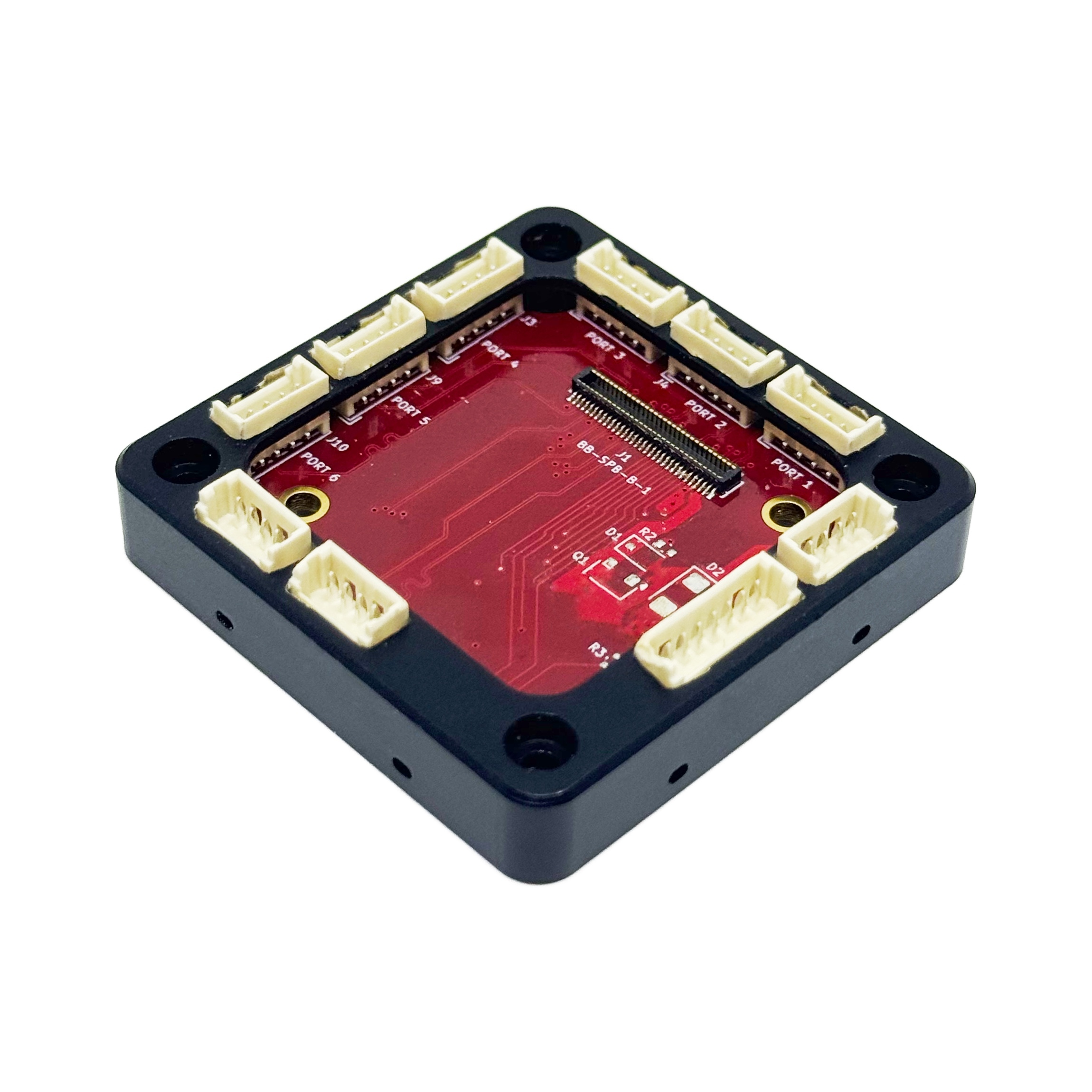

SwitchCore BaseBoard

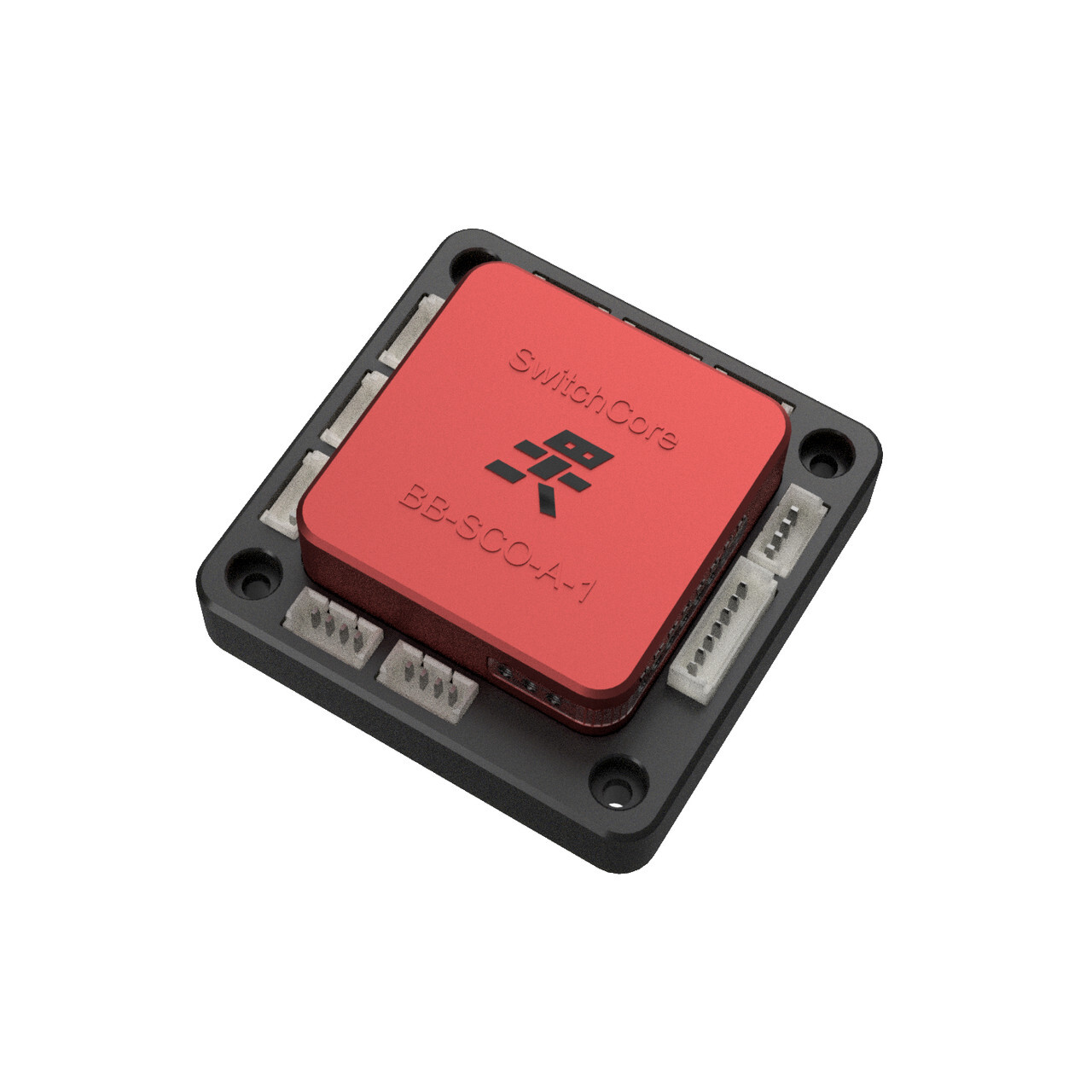

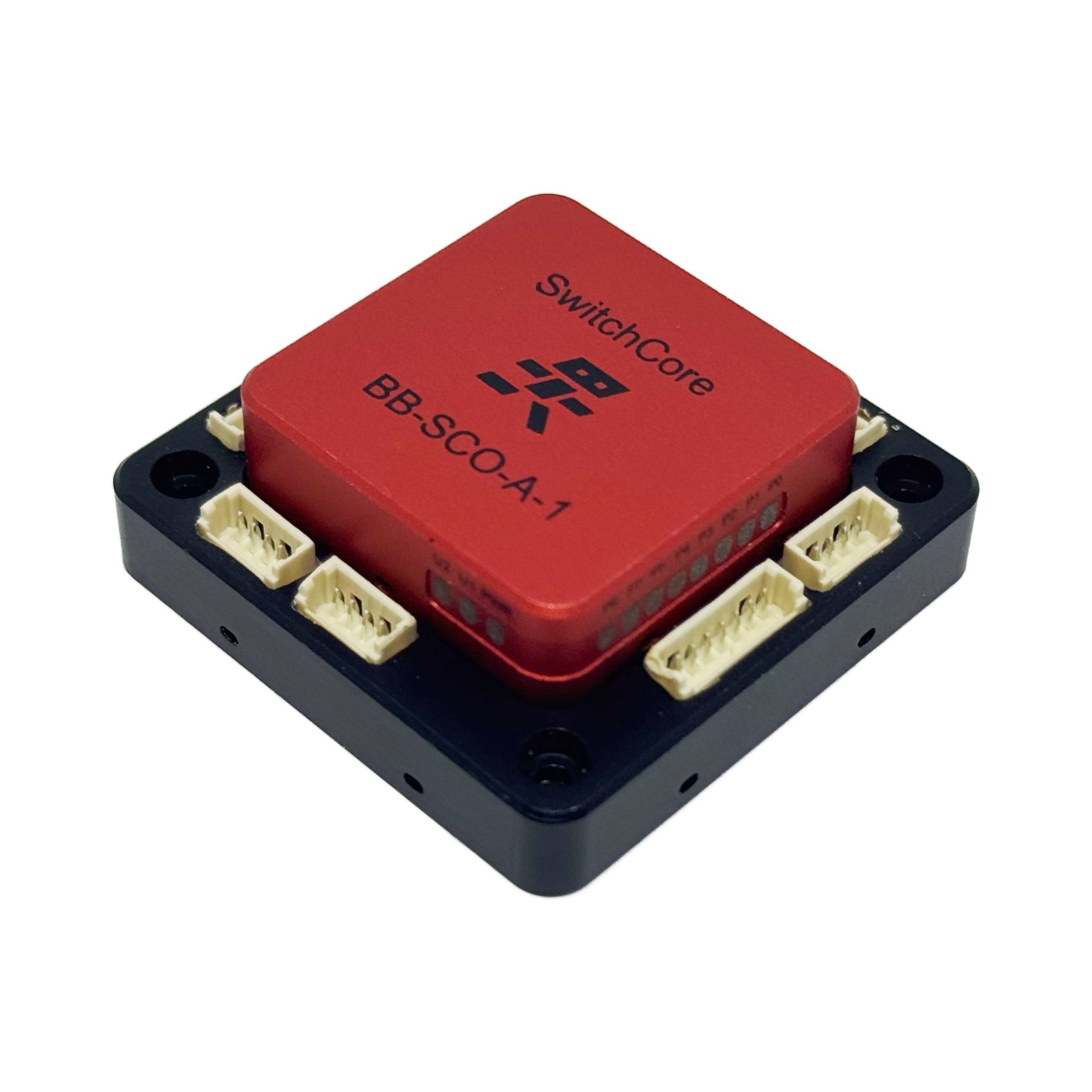

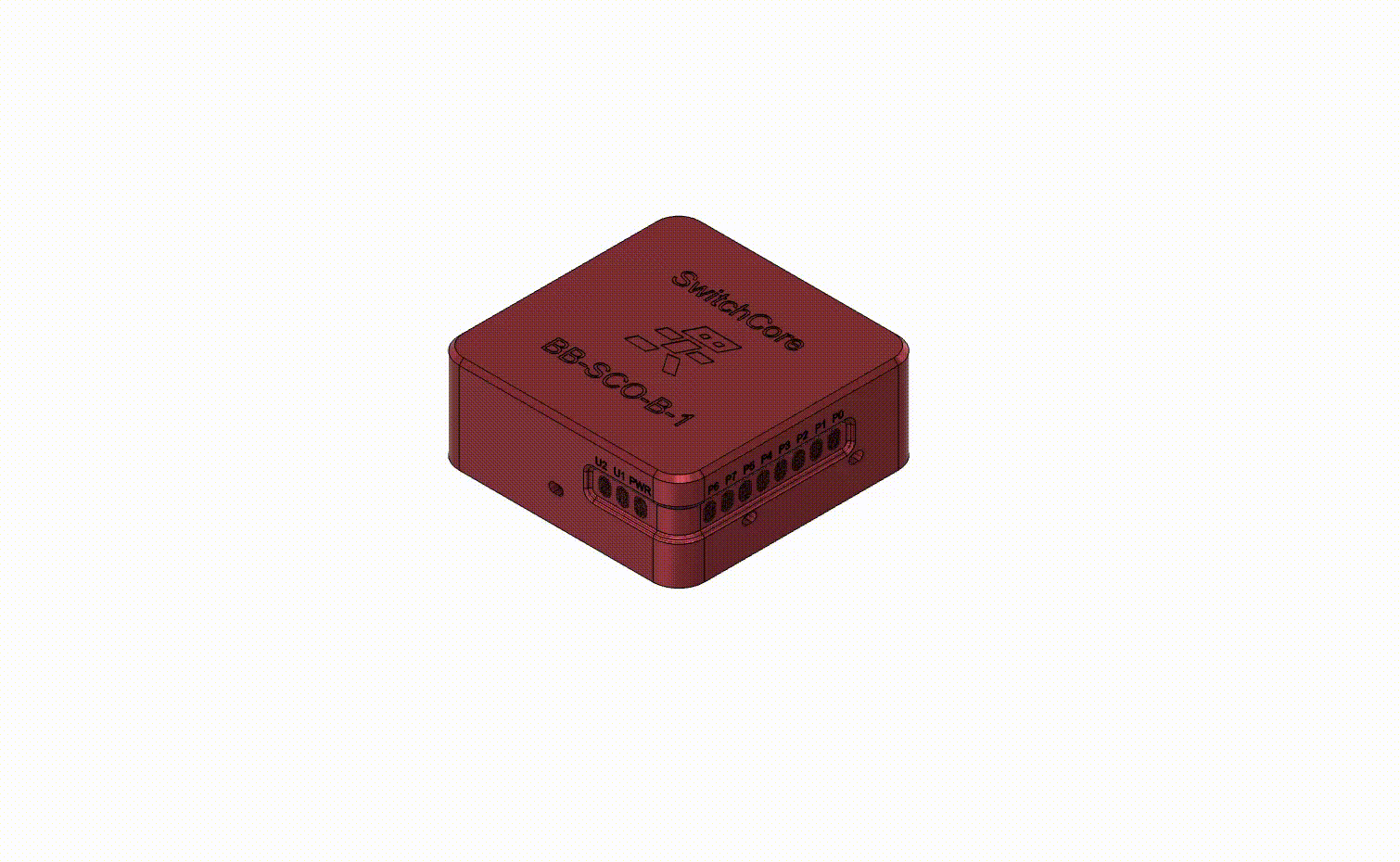

For testing, or applications that don't intend to integrate SwitchCore, you can purchase the SwitchCore Baseboard. When both systems are mated, the SwitchCore system looks as below.

Buy SwitchCore Baseboard

Features

• 8 x 10/100-T galvanically isolated ethernet ports
• Ultra small form factor (27mm x 27mm x 10mm), designed for direct embedding into a custom PCB
• Protective chassis for ultra rugged performance (MIL-STD-810H qualified)
• Military and automotive grade components for trusted performance in harsh environments
• Modular stackable header for custom integration
• Port management, statistics and VLAN

A Modular Design

This module is designed for direct integration into a customer's PCB, bringing "turn-key" ethernet switch and routing with no work required by the customer. This allows system engineers to focus on building their system, rather than worry about the specifics of ethernet networking. No other solution exists on the market that brings this level of integration and performance in such a small, rugged form factor.

Onboard Switch Management

SwitchCore runs a compact version of a linux OS, called BloxOSLite, providing port statistics, port management and VLAN capabilities over TTL UART. This level of management on such a compact device is unprecedented, and enables network sophisticated management abilities in a tiny form factor.

Documentation - https://botblox.notion.site/DroneNet-SwitchCore-BloxOsLite-3010ca7860eb80dbb8e0c5b7b5a748e5

Port statistics on SwitchCore, similar to IP command on Linux.

Tag based VLAN setup on SwitchCore

A Design for Mobile Applications

BotBlox products are designed for use in mobile applications like drones and vehicles, that demand ultra low size and weight without sacrificing ruggedness or functionality. BotBlox specialises in crafting the smallest networking solutions on the market, that are also fully MIL-STD-810H tested and run management for intelligent networking at the edge.

This product is currently in development. We are looking for initial pilot customers, please get in touch if you are interested at info@botblox.org

Input Voltage Range	4-40V
Power Consumption	1.5W maximum
Ports	8 x 10/100BASE-T
Operating Temperature	-40 to +85°C
Dimensions	27mm x 27mm x 10mm
